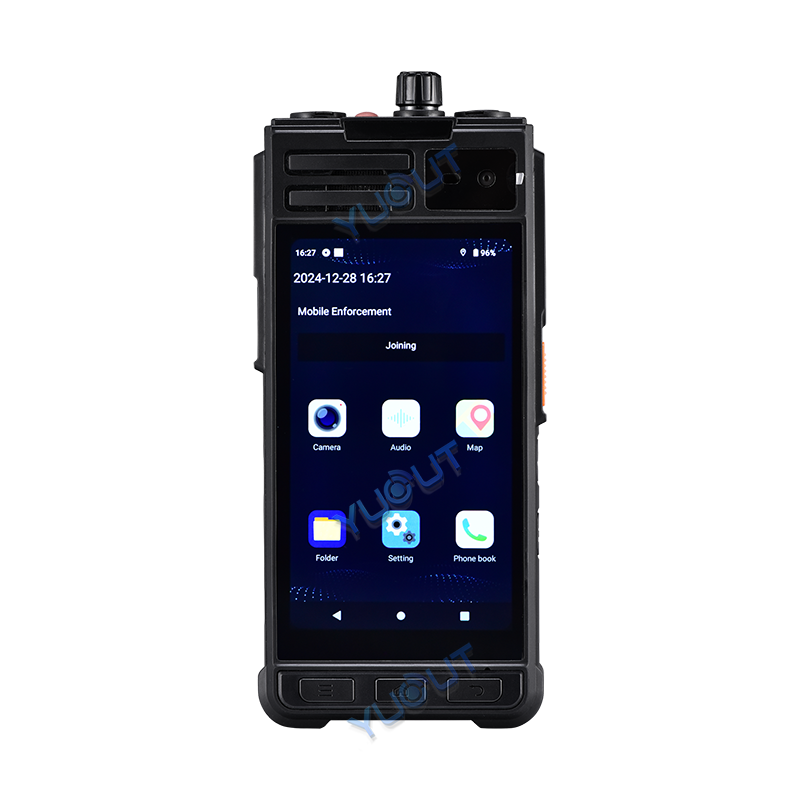

5G Wireless Video HDMI Transmission

YD-TSP260-D-5G

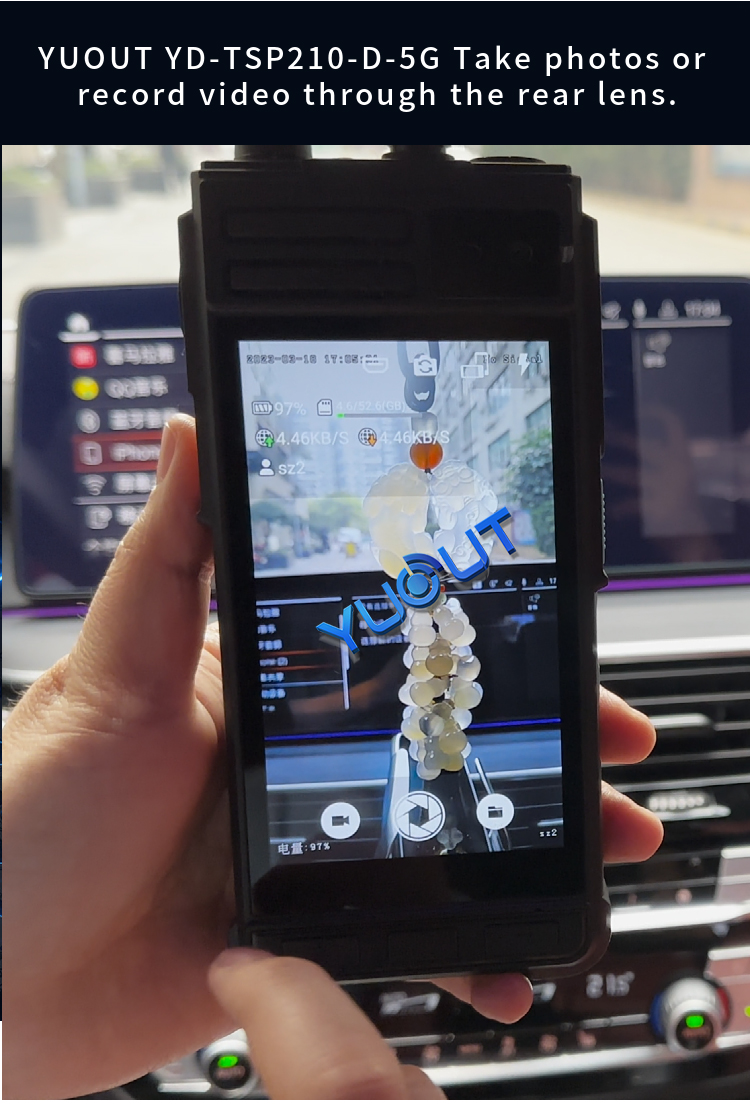

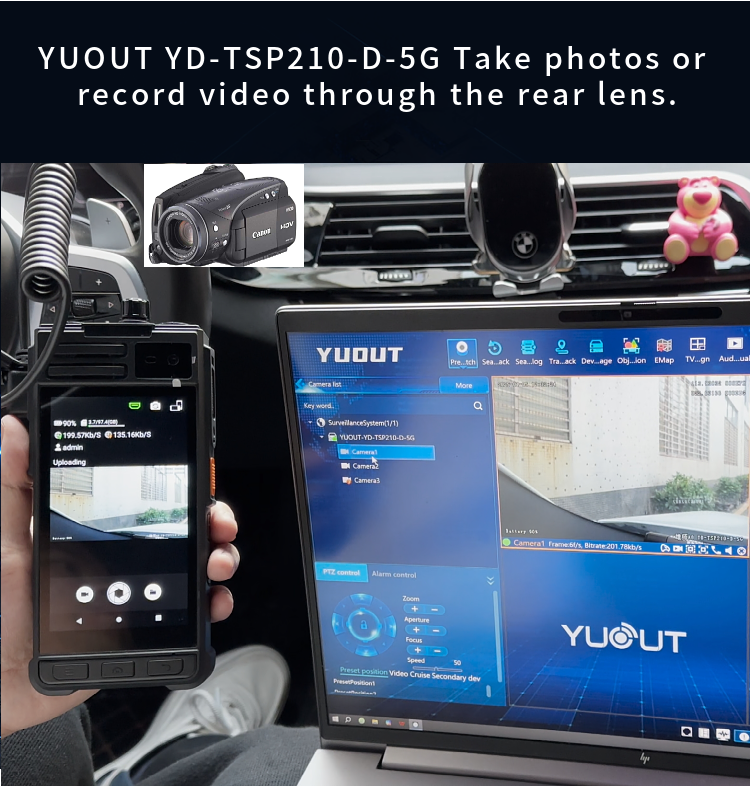

YUOUT YD-TSP210-D-5G is a multi-functional intelligent device with built-in front camera head and rear camera, and supports external HDMI signal source input. This device supports 5G+4G function, and can remotely view the live video of the staff in other regions or cities in the office/command center (for example, I am now in Shenzhen, China, and can view the re-scene video of the staff in Beijing, China), positioning information and call intercom. Install mobile SIM card, can also be used as a mobile phone, can make phone calls. The device is light, easy to carry, and can be hung on the chest and belt. Mainly used in public security patrol, traffic police, drone remote control HDMI output, DV camera and so on.

立即咨詢

產品概述
產品特點
產品參數
應用場景
相關產品
相關案例

01 產品概述

02 產品特點

1. Integrated 5G single-soldier video transmission terminal device, with no assembly components except for the antenna, and built-in Beidou positioning system.
2. Supports 5G and 4G networks, with 1 built-in 4G all-network slot for 1 SIM card and 1 built-in 5G all-network slot for 1 SIM card.
3. Equipped with dual MIC microphones and a high-power speaker, and supports Bluetooth headphones.
4. Supports two-way intercom, group call, and Bluetooth intercom.
5. Built-in WiFi module and antenna supporting IEEE802.11 ac/a/b/g/n, 2.4G/5G. The WiFi can be set as a hotspot.
6. Dual-stream output, with independent settings for dual-stream parameters.
7. 4.7-inch full-view display, flat capacitive touch screen, resolution 1280*720, high-brightness sunlight-readable.
8. Operating system and CPU processor: Android 12, 8-core CPU, main frequency: 2.7GHz.
9. Video compression supports H.264/H.265. Under both compression formats, the main and secondary cameras have 16 million and 8 million pixels respectively, supporting 1080P/720P. The main camera's horizontal center resolution is ≥1300TVL, and the secondary camera's horizontal center resolution is ≥600TV. The frame rate is adjustable from 1 to 30 frames.
10. Shell protection grade ≥ IP68.
11. When the device is in standby mode, the original working state remains unchanged and data is not lost within 6 minutes of battery replacement.

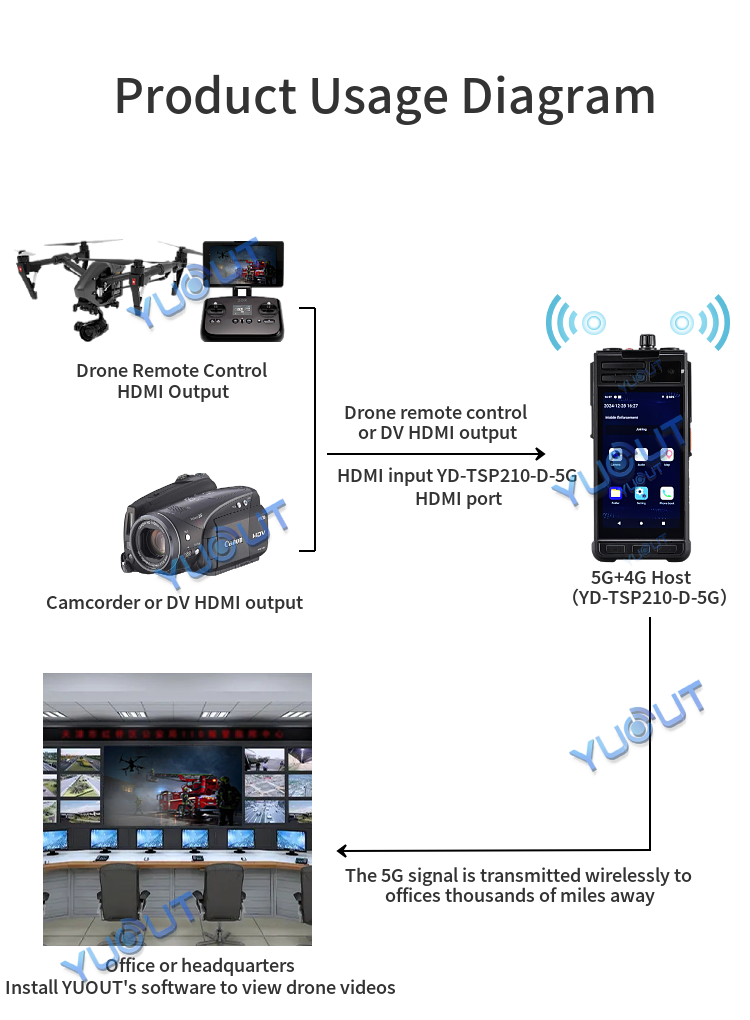

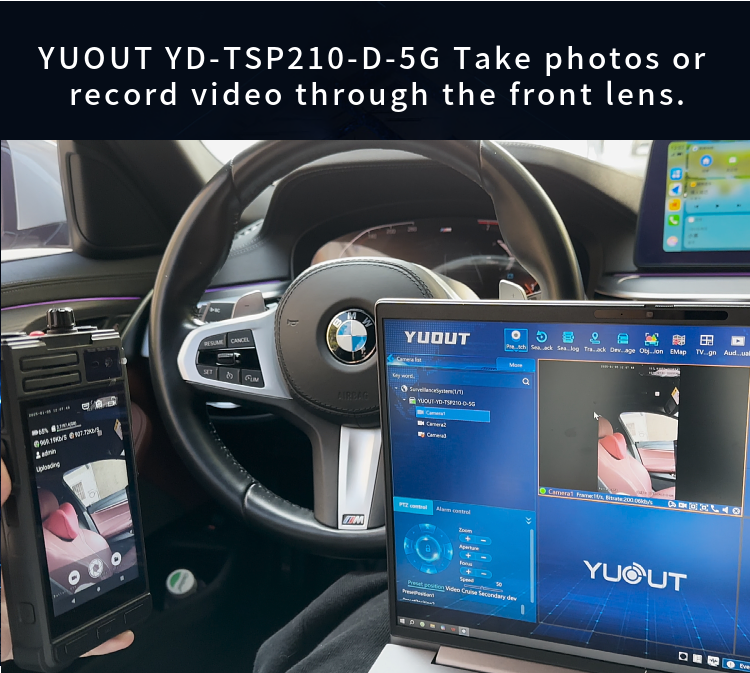

12. Supports input from built-in front and rear dual cameras, 1 HDMI high-definition signal source input, resolution support: ≥1920x1080, ≥1280x720, can be connected to drones or DV/cameras.
13. 2 TF card slots, dual TF card storage, maximum support 512GB.
14. Equipped with a large-capacity detachable battery of 5900mAh, can work continuously for 6 hours, and standby for 72 hours.
15. Supports bare machine drop resistance. When the device is powered on, it can be dropped from a height of ≥2000mm on a cement floor on all 6 sides ≥2 times, and the device can still work normally.
16. Positioning system: single Beidou positioning.
17. Standard desktop charging (gold-plated copper contacts), power supply: 220V, charging: 9V, can charge both the main unit and the battery simultaneously. Comes with a back clip and data cable.

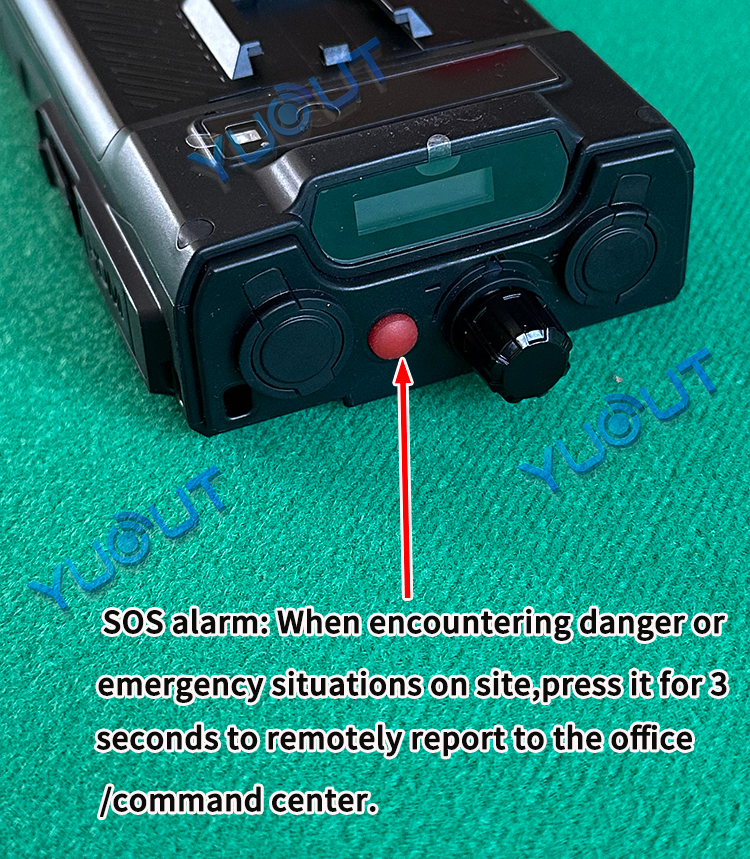

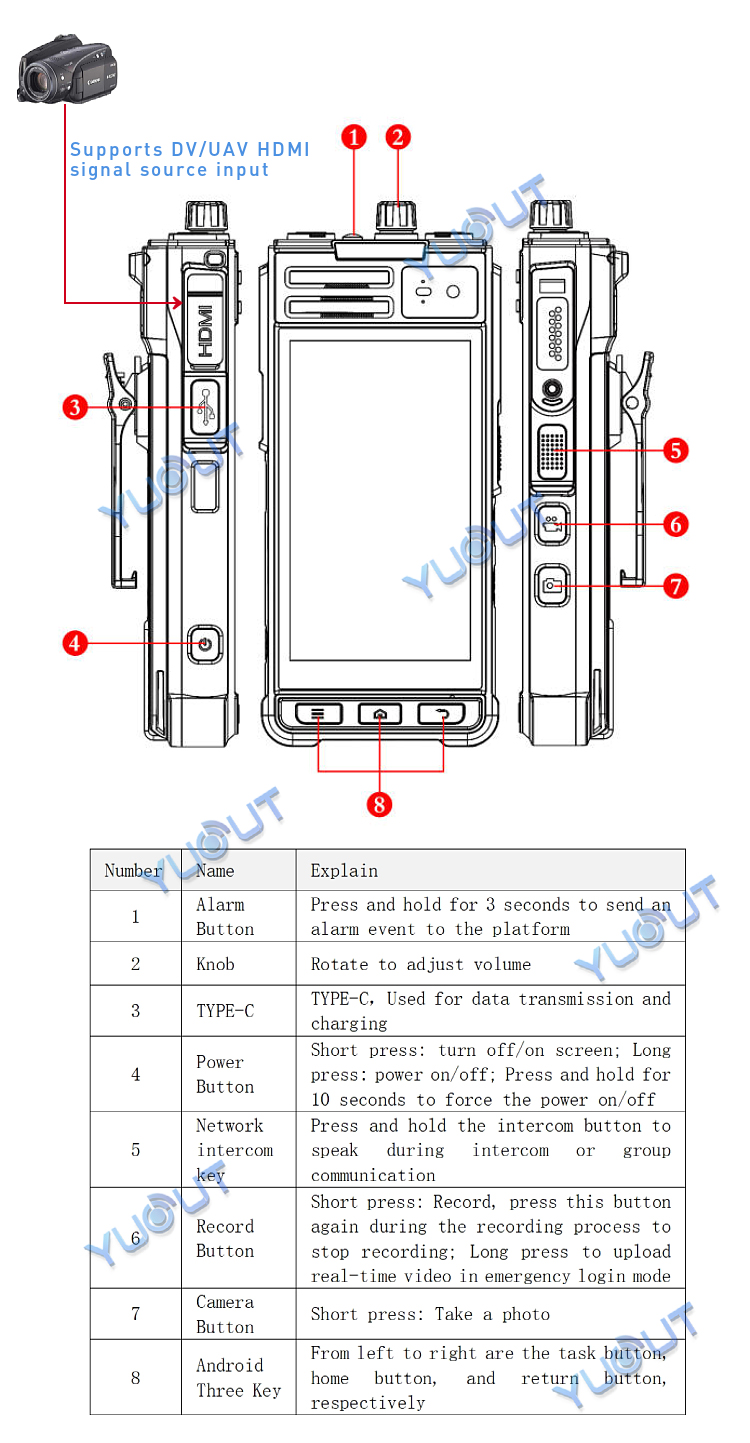

18. Keys for power on/off, rotation, menu, intercom, SOS, photo, video, etc.
19. Supports Yudong Technology emergency command and dispatch platform, and supports national standard GB28181.
20. Intelligent AI recognition system for face, license plate, safety helmet, mask, and smoking AI intelligent recognition.
21. Supports JPG/PNG format pictures, with the same resolution as video recording.
22. Dimensions: 180*80*35mm, weight: approximately 445g.

03 產品參數

project		explain
system	operating system	Android12
Display	screen	4.7-inch high-definition screen，1280*720
video	Camera	Front lens: 800W pixels Rear lens: 1600W pixels
	Encode Algorithm	H.264、H.265
	Resolution	1080P、720P
	speaker	Built in speaker for intercom and shouting sound output
	Intercom	Support two-way voice intercom
storage	capacity	Can support two 512GB external TF storage devices
network	wireless	5G/4G
	WiFi	Built in WiFi module and antenna
	Bluetooth	Built in Bluetooth module and antenna
power supply	charge	TYPE-C Interface charging
power supply	Battery	5900mAh@4.2V
positioning	standard	GPS/BD
environment	operation temperature	-10℃~55℃
Dimension		1808035mm，≈445g
